Scene Shot Bookmarks in Unity

Article Purpose

The purpose of this article is to visit an internal (and currently undocumented) UnityEditor class that is useful for making Scene View custom editors.

Additionally, I'll introduce an open source custom editor called Scene Shot Bookmarks that speeds up authoring and level design by bookmarking numerous Scene View camera angles.

Scene View Limitations

Currently, there are only two built-in ways to update the Scene View:

  1. Manually pan, zoom, and rotate the Scene View with mouse and keyboard
  2. Interact with the Scene View gizmo to quickly change the Scene View camera angle and/or the perspective style

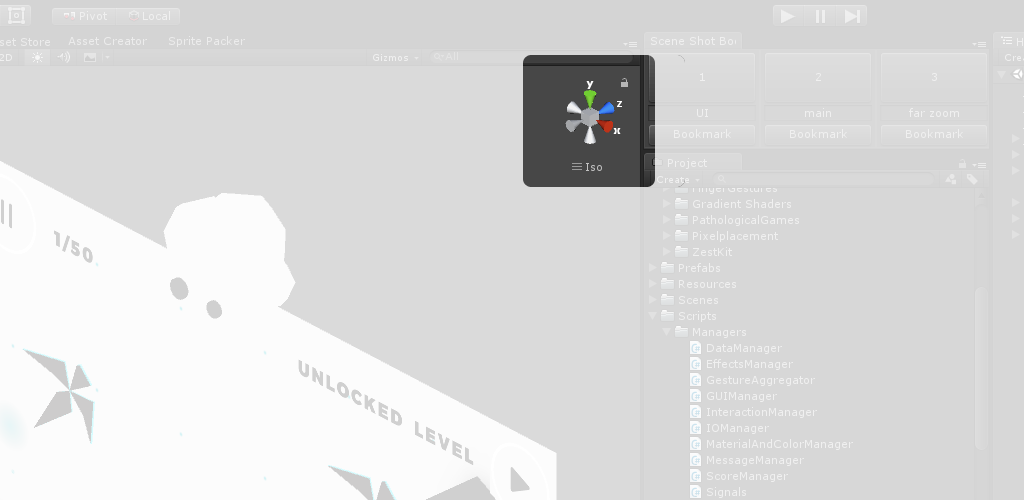

Scene View Gizmo

Scene View gizmo is rad, but limited

Both are really handy tools, but their use is limited. Additionally, both are slow when you want to quickly reconfigure the Scene View camera angle to a previous vantage point. I figured there was a better way and upon a little research I found out that there was.

SceneView

Unity has an undocumented SceneView class that provides a great way to dynamically change the Scene View with a custom editor. This is exactly what I wanted, access to the Scene View itself through code.

Upon researching, I found Matt Rix's UnityDecompiled repo and this SceneView example snippet by @ShawnWhite of Unity Technologies. Combined, I had all that I needed to create the tool I envisioned.

Scene Shot Bookmarks

I created the Scene Shot Bookmarks custom editor to answer one simple question:

How can I update the Scene View camera to saved shots (angle, zoom, etc.) in one-click?

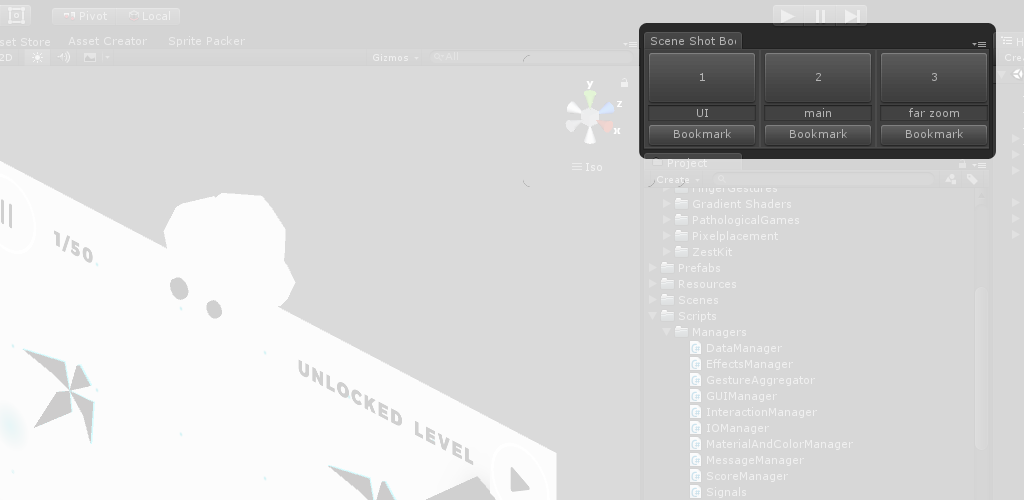

Here is an example screenshot of the custom editor for reference:

Scene Shot Bookmarks Custom Editor

Scene Shot Bookmarks

Once the Scene Shot Bookmarks editor is open, you can do one of two things:

  1. Save the current Scene View camera state (Bookmark button)
  2. Instantly reset the Scene View to a bookmarked camera angle (# button)

That's it. It is a really simple, but useful tool. I additionally used the ScriptableObject class as opposed to EditorPrefs for persisting saved bookmarks. So, in addition to the two core aforementioned functions of Scene Shot Bookmarks, you can:

  • Share bookmarks with your team (via source control)
  • Persist bookmarks after closing and reopening Unity
  • Associate nicknames to bookmarks for context
  • Change the bookmark count via the Inspector Window

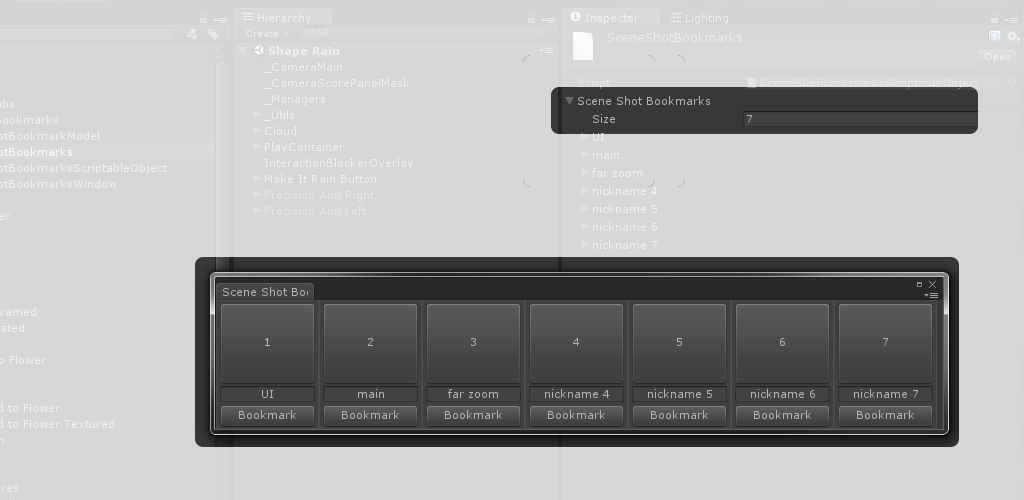

Here is a sample shot showcasing how simple it is to change the Scene Shot Bookmark UI to fit your game or application:

Scene Shot Bookmarks Custom Editor - Count

Scene Shot Bookmarks - Custom Count

You can get Scene Shot Bookmarks on Github.

Github - Scene Shot Bookmarks

If you end up forking and building off it, I'd love to see what you come up with. Ping me on Twitter @derekknox if so and/or if you have any questions or comments.
